985 Litre Drinking Water Cube

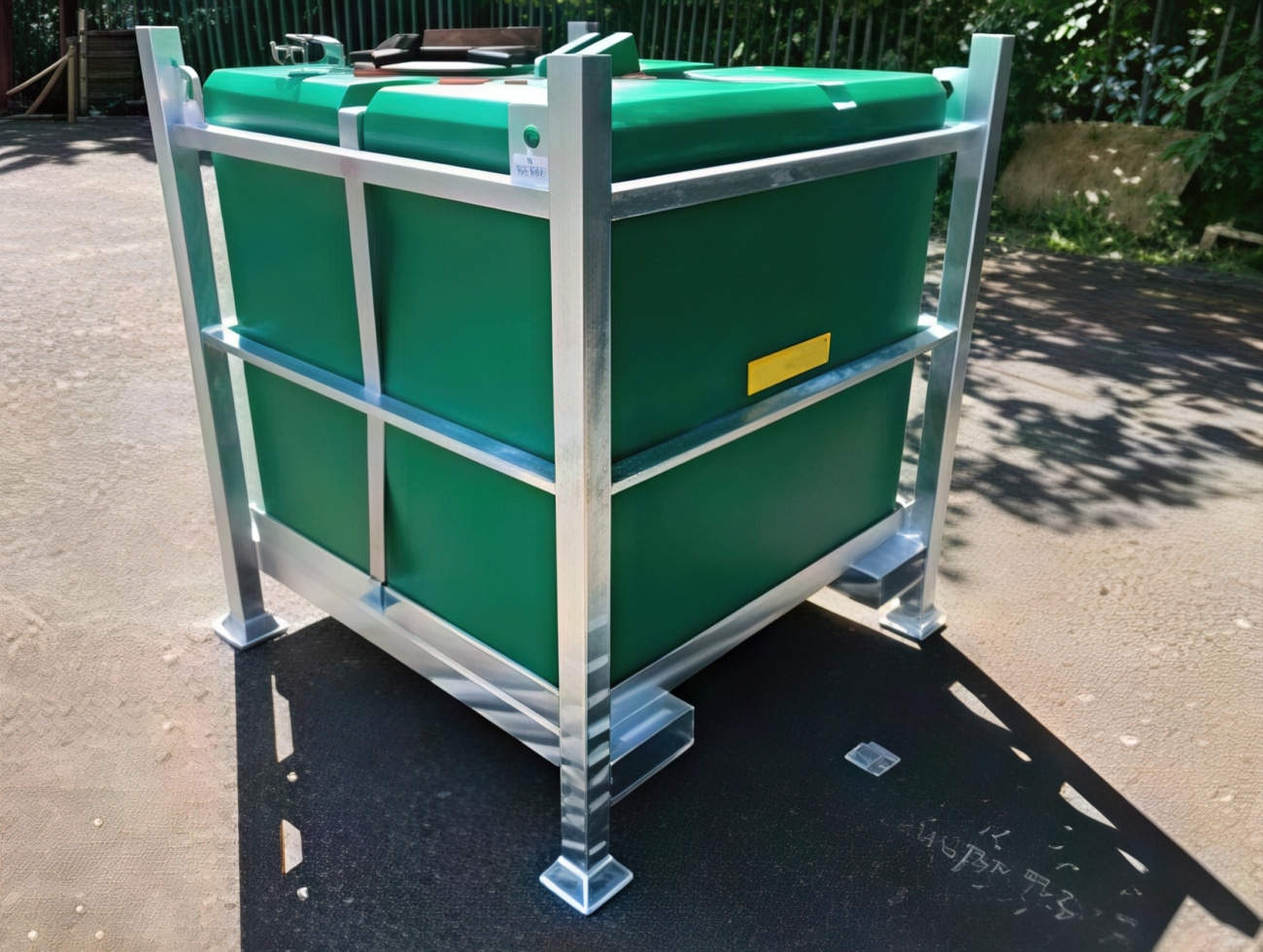

DRINKING WATER CUBE DIMENSIONS (APPROXIMATE): HEIGHT: 1430mm overall (exc.cabinet) LENGTH: 1213mm (exc.cabinet) WIDTH: 1213mm (exc.cabinet) UNLADEN WEIGHT: 330kg LADEN WEIGHT: 1315kg CABINET WIDTH: 300mm CABINET LENGTH: 910mm CABINET HEIGHT: 450mm OUTER TANK: This drinking water cube comes with a corrosion free, robust Polyethylene tank. INNER TANK: Our 985 litre drinking water cube comes with a corrosion free, robust Polyethylene inner tank, 20mm insulation fitted to the tank walls, 25mm under floor insulation c/w Base Heating system. 2” filler cap. Contents gauge. Pump Suction Pipe and vented 180mm inspection lid. FRAME: Galvanised 5mm reinforced steel frame with 5mm protective bottom base plate c/w built in fork sockets on four sides. Four corner lifting eyes. Gas strut assisted secure lockable steel access lid. STORAGE: Approved to stack 2 high when full and 3 high when empty. OPTIONAL PUMPS: 110v or 240v On Demand Pump c/w trace heating wire to prevent freezing. All hoses are trace wire heated and insulated to prevent freezing c/w thermostatically controlled unit. All mounted in a bolt-on galvanised lockable cabinet. FINISH: Blue Polyethylene Drinking Water cube approved, as standard. Other colours available. Galvanised frame and lid.
