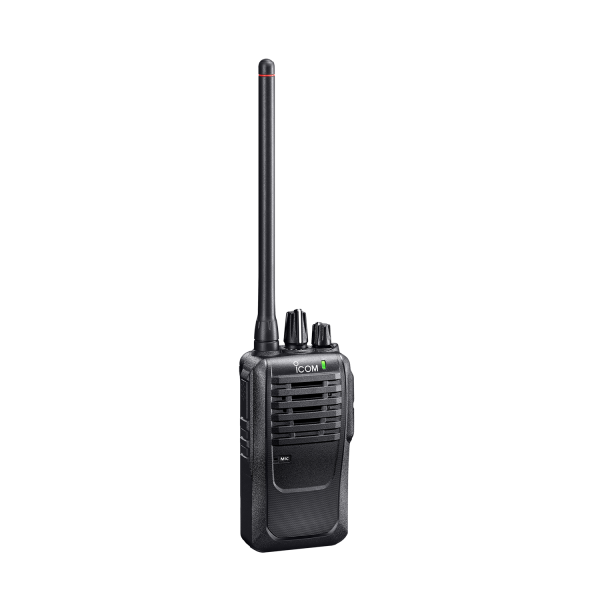

ICOM IC-F3003 Portable FM Transreceiver VHF 136~174MHz Free Shipping

ICOM IC-F3003 Portable Transreceiver VHF 136~174MHz Simple operation for instant communication, 1500 mW (typical) loud and intelligible audio with BTL amplifier and large 45mm speaker,IP54 and MIL-STD-810 rugged body, Low consumption current for longer operating time. Introduction The Ic-F3003 series is so easy to use there’s no special training required. The built-in bridge-tied load amplifier offers powerful 800mW audio output from the large 45mm speaker. The radio has the internal VOX capability for hand-free operation. A new high efficiency FET of the IC-F3003 series reduces consumption current and provides 20 hours of operating time with the BP-265, 2000mAH battery pack. Features: Simple operation for instant communication 800mW (typical) loud and intelligible audio with BTL amplifier and large 45mm speaker. IP54 and MIL-STD-810 rugged body Low consumption current for longer operating time CTCSS/DTCS tone encoder/decoder built-in MDC1200 PTT ID and Emergency Internal VOX function (Optional headset and adapter cable required.) Desktop charger, BC-192 and AC adapter BC-147S supplied Specifications Frequency range 136 MHz–174 MHz Number of memory channels 16 channels Type of emission 11K0F3E/16K0F3E Channel spacing 12.5 kHz/25 kHz Power supply requirement 7.2 V DC Current drain(approximate) Tx       High     1.3 A Rx       Stand-by   75 mA Max. audio   500 mA (Internal SP) Antenna impedance 50 Ω Operating temperature range –30°C to 60°C, –22°F to 140°F (Radio only) Dimensions (W×H×D)(Projections are not included) 58×111×35.5 mm,2.3 × 4.4 × 1.4 mm (With BP-298) Weight (approximate) 265 g, 9.3 oz (With BP-298) Transmitter RF output power (at 7.2V DC) 5 W, 2 W, 1 W (Hi, L2, L1) Max. frequency deviation ± 5.0 kHz/±2.5 kHz (Wide/Narrow) Frequency stability ±2.5 ppm Spurious emissions 70 dB (min.) Residual modulations 58/53 dB typical(Wide/Narrow) Audio harmonic distortion(AF 1 kHz 40% deviation) 1.0%/1.5% typical(Wide/Narrow) Receiver Sensitivity(at 12dB SINAD) 0.25dBμV (typ.) Adjacent channel selectivity (W/M/N) 78 dB/70 dB (typ.) Spurious response rejection 70dB (min.) Intermodulation rejection 75 dB (typ.) AF output power(at 5% distortion ) Internal SP(With 8Ω load)           1500 mW (typ.) External SP(With 8Ω load)          400 mW (typ.) Packaging Details Standard package with BP-298/BP-264, battery pack BC-240, Desktop charger BC-242, AC adapter MB-124, belt clip Antenna
