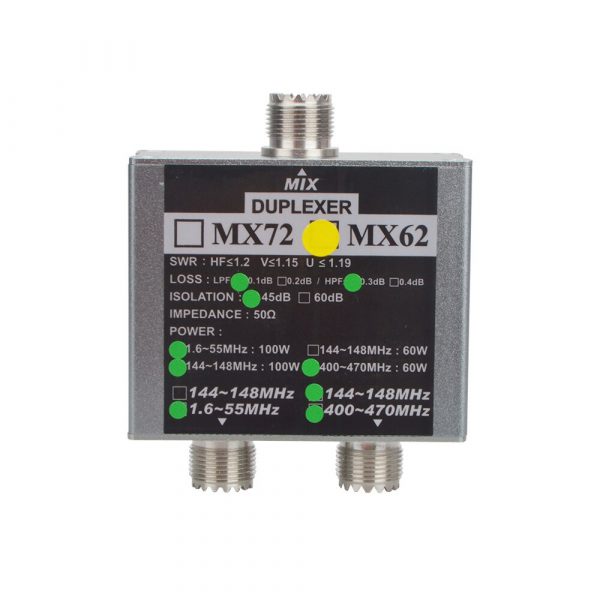

1.6-55MHz HF walkie talkie MIX MX62 Amateur Antenna Combiner VHF 144-148MHz UHF 400-470MHz tri-band different band working mode Linear Antenna Duplexer 50ohm 60-100W MIX MX72 Ham Mobile Radio Antenna Combiner Duplexer Antenna Attention: -Available to Work with 2 mobile transceiver and 1 Antenna -The antenna and transceivers must match to the frequency bands of the MX62 Antenna combiner -The transmit frequencies band of the 2pieces connected mobile transceiver must be in different frequency band when they are in transmit status simultaneously, otherwise the device MX62 will be invalided. – Comes with 2 pieces Coaxial Cable (30cm Cable Length) for connecting to the mobile transceiver Specifications: Working Frequency Range of the Antenna Combiner: 1.6-55MHz,144-148MHz and 400-470MHz SWR: HF≤ 1.2,VHF≤1.5, UHF≤1.19 LOSS: LPF:0.1dB, HPF:0.3dB ISOLATION: 45dB Impedance: 50 ohm Power: 1.6-55MHz:100W, 144-148MHz:100W,400-470MHz: 60W Interface: SO239 Size:75*63*35mm Weight:275g Package Contents: 1× MIX MX62 Antenna Combiner 2×Coaxial Cable (30cm length) Photos:
