SGQ-150X Duplexer VHF 136-174MHz 10W Duplexer for Radio Repeater N Female Connectors
$10.6
$20.78

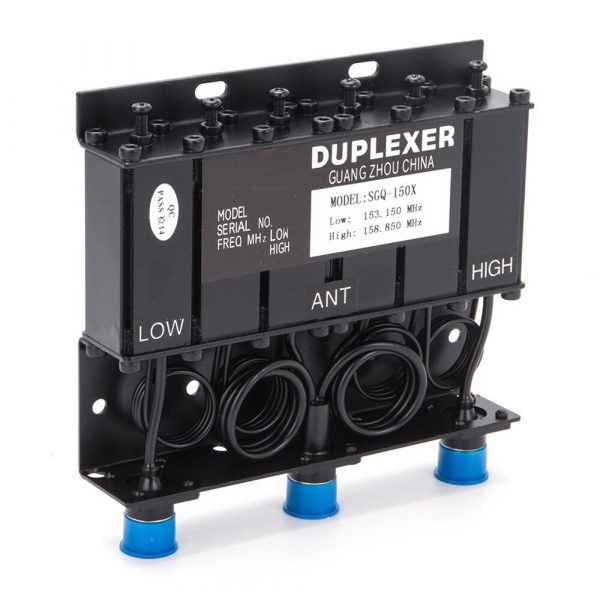

modname=ckeditor SGQ-150X Duplexer VHF 136-174MHz 10W Duplexer for Radio Repeater Tuned Low Frequency 153MHz High Frequency 158MHz N Female Connectors Describe: 1:Made of iron, this product is of high quality, strong and durable. 2:This item has been set by factory with low frequency 153MHz, high frequency 158MHz and N female connector type, it is easy to build your repeater. 3:It is tunable between 136-174MHz, you can turn it by yourself when you have the tools. 4:The Duplexer for Radio Repeater is N Female connector, suitable for wireless communication equipment in large places such as residential areas, shopping malls, hotels, etc. 5:The size of this Duplexer is about 154*126*32mm/6.06*4.96*1.25in. Feature: Product Name: Intercom Relay Box Product model: SGQ-150X Frequency range: 136-174MHz Working bandwidth: /- 100 Transceiving interval (MHz): 5.7 Insertion loss (dB): less than 1.0dB Standing wave ratio: less than 1.3 Isolation (dB): more than 80 Inhibition (dB): more than 80 Impedance ( ohm): 50 Power capacity (W): 3-15W (10W) Connector form: N-Femele Working temperature: -25℃- 55℃ Relative humidity: 5-95% Colour: black Material: metal Package Includes: 1* SGQ-150X Duplexer modname=images&cols=1&colspace=10&rowspace=10&align=center
