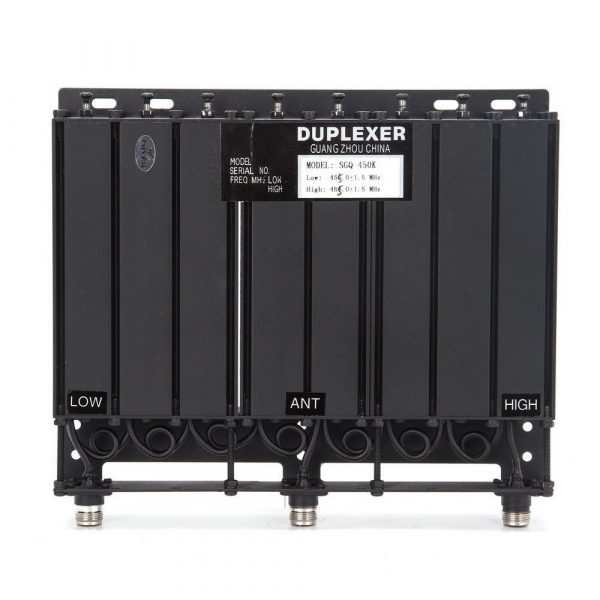

FREE Tune Radio Repeater Duplexers SGQ-450K 100W UHF 400-520MHz Customizable Frequency Portable Duplexer

$13.78 $25.22
modname=ckeditor SGQ-450K 100W UHF400-520MHz customizable frequency Portable Duplexer Note： Be sure to note the required frequency point, otherwise the default TX：157.0±1.0MHz/RX：163.0±1.0MHz Specification: Product Number：SGQ-450K Frequency Range：400-520MHz Bandwidth：±1.5MHz Frequency Spacing：10MHz Isolation Loss：≤1.0dB V.S.W.R：≤1.5 Isolation：≥75dB Suppression：≥75dB Impedance：50Ω Max.power Input：80-150W(100W） Standard Termination：N-Female Operating temperature：-25℃- 55℃ Operating Humidity：5-95% Dimensions：260×230×40mm Weight：2.2kg Package Including: 1*  SGQ-450K Portable Duplexer
