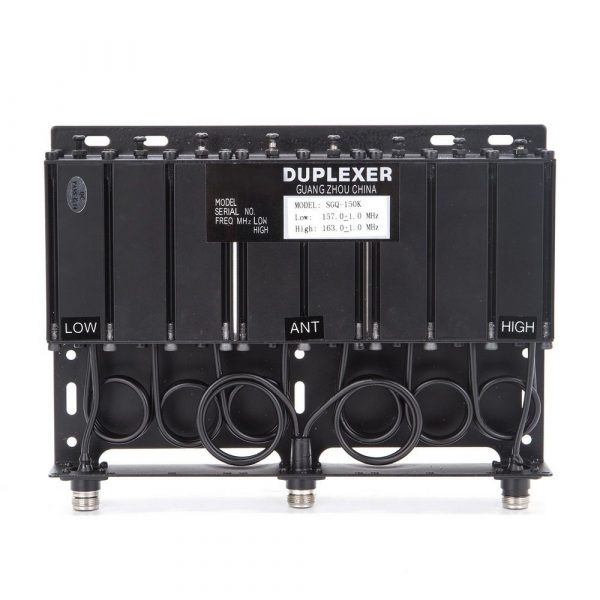

SGQ-150K 100W VHF Duplexer Customizable frequency Portable Duplexer For Radio Repeater

$26.88 $33.06
modname=ckeditor Walkie Talkie Duplexers SGQ-150K 100W VHF136-174MHz customizable frequency Portable Duplexer Note： Be sure to note the required frequency point, otherwise the default TX：157.0±1.0MHz/RX：163.0±1.0MHz Specification: Product Number：SGQ-150K Frequency Range：VHF136-174MHz Bandwidth：±1.0MHz Frequency Spacing：6.0MHz Isolation Loss：≤1.0dB V.S.W.R：≤1.5 Isolation：≥80dB Suppression：≥80dB Impedance：50Ω Max.power Input：80-150W(100W） Standard Termination：N-Female Operating temperature：-25℃- 55℃ Operating Humidity：5-95% Dimensions：225×154×40mm Weight：2.1kg Package Including: 1* SGQ-150K Portable Duplexer
