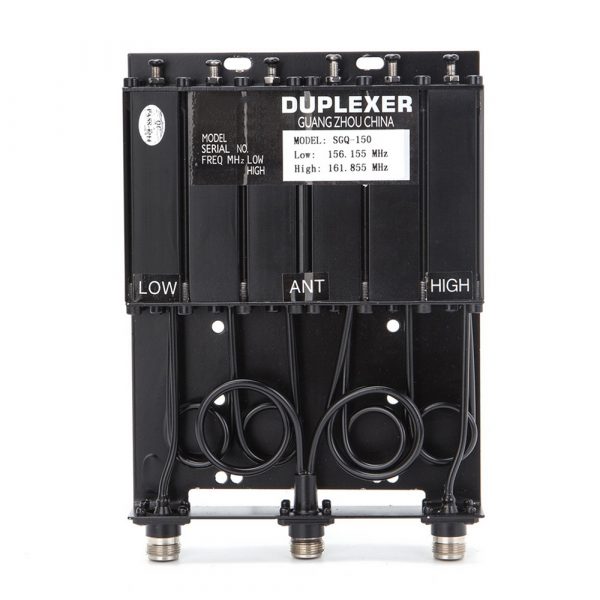

SSGQ-150 25W VHF136-174MHz customizable frequency Portable Duplexer

$24.55 $36.33
modname=ckeditor SGQ-150 25W VHF136-174MHz customizable frequency Portable Duplexer Note： Be sure to note the required frequency point, otherwise the defaultTX：156.155/RX：161.855MHZ Specification: Product Number：SGQ-150 Frequency Range：136-174MHz Bandwidth：±150KHz Frequency Spacing：5.7MHz Isolation Loss：≤1.0dB V.S.W.R：≤1.3 Isolation：≥80dB Suppression：≥80dB Impedance：50Ω Max.power Input：20-35W(25W） Standard Termination：N-Female Operating temperature：-25℃- 55℃ Operating Humidity：5-95% Dimensions：225×154×32mm Weight：1.1kg Package Including: 1* SGQ-150  25W Portable Duplexer
