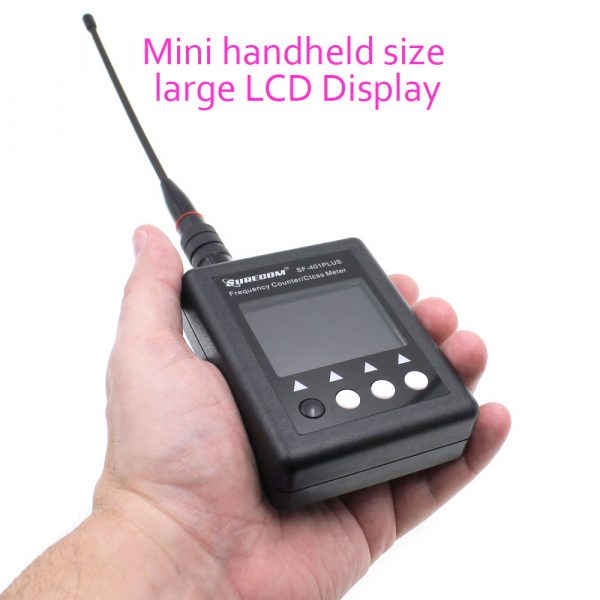

New Version SURECOM SF-401Plus Digital Radio Frequency Counter with CTCCSS/DCS Decoder
$28.06
$52.75
New Version SURECOM SF401plus Portable Frequency Counter with CTCCSS/DCS Tester New Function for Digital Radio Introduction: The frequency meter capable of measuring the parameters of the frequency of the continuous carrier signal walkie-talkies , with signal strength indicator. it is the tool of choice for maintenance personnel,test frequency and signal strength of wireless enthusiasts. This portable frequency counter is designed for counting continuous wave signal comes from Two-way Radio. There are easy ranges for you to choose. The ranges cover most of the frequency of the two way radios you want to measure. Its four-button control is easy to use and its small size allows you to carry it anywhere you like. This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF DMR Radio signal frequency counter. Feature & Specification: Frequency range: 27Mhz-3000Mhz CTCSS/DCS Decoder LCD Dim level setting Frequency digital 0000.000 or 0000.0000 Work by TCXO(Temperature Compensate X’tal (crystal) Oscillator) 2 – 2.5ppm Rresponse time: 0.2s. Color Display Build-in Li-ion battery Net Weight: 113g 4 buttons control Auto power off 1-9minutes Chaging battery LED indicator (Do not direct Connection Walkie talkie RF output by cable ,HIGH RF output will damage FREQUENCY counter ) Specifications: TFT LCD: 320 x 240 pixels Frequency Range: 27Mhz -3Ghz Li-ion Battery build-in : 3.7V 600mah current consumption: 10ma TCXO crystal Oscillator - 2.5ppm Change in: Micro usb 5V impedance input: 50 Ohm (BNC) Weight: 113g Dimensions size : 70 x 30 x 90mm SF-401/PLUS CTCSS CTCSS (Hz) 50.0 97.4 151.4 192.8 55.0 100.0 156.7 196.6 67.0 103.5 159.8 199.5 69.3 107.2 162.2 203.5 71.9 110.9 165.5 206.5 74.4 114.8 167.9 210.7 77.0 118.8 171.3 218.1 79.7 123.0 173.8 225.7 82.5 127.3 177.3 229.1 85.4 131.8 179.9 233.6 88.5 136.5 183.5 241.8 91.5 141.3 186.2 250.3 94.8 146.2 189.9 254.1 CDCSS Standard sf401 check Standard sf401 check Standard sf401 check Standard sf401 check 23 23 143 143 266 465 465 25 25 145 271 271 466 466 26 26 152 152 274 503 503 31 31 155 155 306 306 506 506 32 32 156 156 311 311 516 516 36 162 162 315 315 532 532 43 43 165 165 325 546 546 47 47 172 172 331 331 565 565 51 51 174 174 332 606 606 53 205 205 343 343 612 612 54 54 212 346 346 624 624 65 65 223 223 351 351 627 627 71 71 225 356 631 631 72 72 226 226 364 364 632 632 73 73 243 243 365 365 654 654 74 74 244 244 371 371 662 662 114 114 245 245 411 411 664 664 115 115 246 412 412 703 703 116 116 251 251 413 413 712 712 122 252 423 423 723 723 125 125 255 431 431 731 731 131 131 261 261 432 432 732 732 132 132 263 263 445 445 734 734 134 134 265 265 464 464 743 743 754 754 Package Contents 1x SF401 plus Frequency Counter 1 x UHF Antenna 1x User Manual 1x USB charger cable 1x USB AC adapter 100-240V
