Latest version MAT-40 Automatic Antenna Tuner HF Radio Short Wave for Icom Yaesu Kenwood Ham Radios

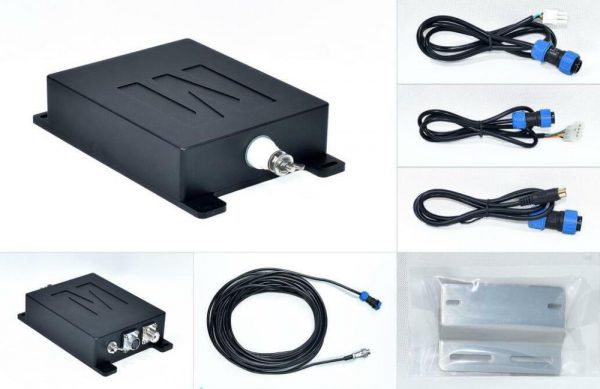

Latest version MAT-40 3M-54MHz 120W Automatic Antenna Tuner HF Radio Short Wave For ICOM YAESU Kenwood Ham Radio   Manual download link: http://www.mat-tuner.com/en/mAT-40.php The difference between four version is below:  Version Antenna Tuner Data Cable ICOM Cable YAESU Cable Kenwood Cable ICOM √ √ √ YAESU √ √ √ Kenwood √ √ √ ICOM&YAESU&Kenwood √ √ √ √ √ Features The MAT-40 is a versatile long-line antenna tuner that can support Yaesu, Icom, Kenwood and other brands of radios with different interface cables,. The tuner housing is produced in an aluminum milling process that is aesthetically pleasing, compact, compact and rugged for use in a variety of demanding outdoor applications. The tuner is only 20cm which is one of the smallest outdoor antenna tuners in the world. MAT-40 also can provide 16,000 memory locations. When tuning near a previously used frequency it will recall the settings for nearly instant tuning. More function are elaborated in our English manual. Parameters Maximum power: 120W Operating frequency: 3M-54MHz Working mode: fully automatic Adjust standing wave: most antennas can be adjusted to below 1.5 standing waves Working power supply: use ICOM/YAESU/Kenwood interface and power from the radio Antenna impedance: 5-1500Ω Dimensions: 130mm(W)*200mm(L)*45mm(H) Net weight: 1000g Packing List 1*MAT-40 Automatic Antenna Tuner 1*Data Cable 1*ICOM/YAESU/Kenwood Cable(optional) 1*English Manual
