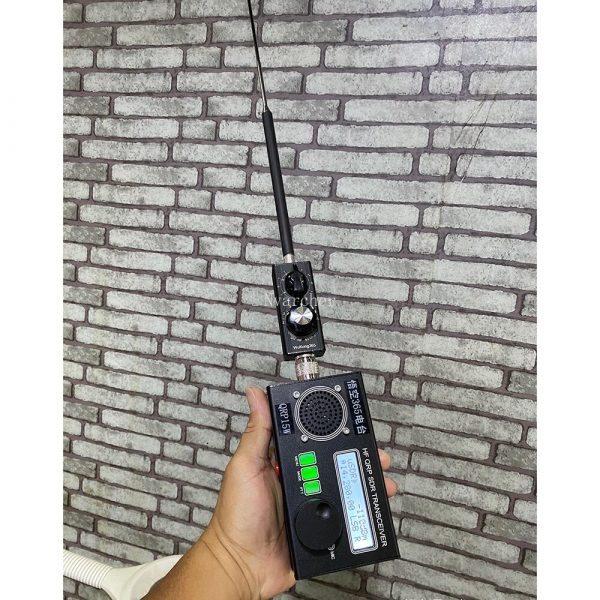

Mini-ANT 20W QRP Shortwave Antenna HF Portable 5MHz-55MHz Full-Band Tuned Antenna For Yaesu FT-817 ICOM 703 K1 USDX Extended use method: connect a 20m long wire to the nut of the rod antenna, and pull the long wire to the roof or outdoors. The emission efficiency is increased several times. This method can replace the rod antenna. This antenna does not require a ground grid or ground wire. Tunable various large long-line antennas Specifications: – Adjustable frequency: 5MHz-55MHz for sending and receiving – VSWR less than 1.5 at 7MHz/10MHz/14MHz/21MHz – Power: 20W – FM 76mhz-108mhz reception – Can receive UHF VHF frequencies. With transmitting assistance funciton – Adjust frequency via its knob; and the band switch selects the short-wave high and low bands – Stretched size 140cm/55.1″ (including tuner). Made of stainless steel – Unstretched size around 30cm/11.8″ (including tuner). Tuner size 10 x 3 x 3cm/3.9 x 1.2 x 1.2″ (LxWxT) – Top with M4 male connector. Output M male (default) or BNC male connector Without UV band by default Package Included: – 1 x Tuner with long wire nut – 1 x 1.4m Antenna
