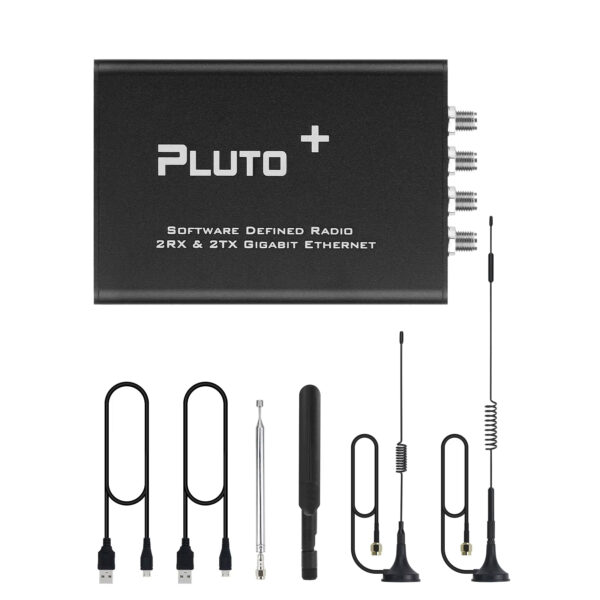

Original PLUTO ADC/DAC AD9363 SDR Radio Receiver Transmitter 70MHz-6GHz Software Defined Radio ADI ADALM-PLUTO Plus

Original PLUTO ADC/DAC AD9363 SDR Radio Receiver Transmitter 70MHz-6GHz Software Defined Radio ADI ADALM-PLUTO Plus   Product Overview:  PLUTO is a software-defined radio platform that supports 2TX and 2RX, supports Gigabit Ethernet and Micro SD card. It refers to the design for well-known ADI ADALM-PLUTO and improves its shortcomings. Features: – ADC/DAC: AD9363 (Can hack to AD9361 or AD9364) – 2 Transmit, 2 Receiving channel – RF Range: 70MHZ~6GHZ – Ref Clock: VCTCXO 40MHZ 0.5ppm – SOC: for Zynq7010 FPGA: 28k – RAM: 512M – FLASH: 32M – USB: 2.0, support OTG – Ethernet: 1000Mb – Micro SD can use to boot – DC IN: 5V±0.5V-2A microUSB Interfaces: Please note that all IO levels are 1.8V. 3.1 When using the official firmware for ADI-PlutoSDR, please connect to URST-MI052. 3.2 When using Pluto firmware and need to support Ethernet, please connect URST-MIO46 3.3 When using SD card to boot, please connect SD-H to 1V8 3.4 When using JTAG to debug, please connect JTAG# to GND 3.5 Please connect EXCLK to GND when using external reference clock input PTT Key Port: – PTT drives optocouplers through GPIO0 (MI00), which requires an external relay or control circuit. DFU KEY: – At any time, you can press the DFU button and power on PLUTO again to enter the DFU mode, but you need to connect the URST jumper to MI052. Ref CLK input IPEX: – You can connect a cable to input an external high-precision reference clock for AD9363 through the IPEX interface. – The main level should not exceed 3.3V, and the EXCLK jumper needs to be connected to GND to turn off the built-in clock Calibrate the Frequency of Built-in VCTCXO: – The frequency of the 40M clock can be fine-tuned by adjusting the adjustable resistor next to the VCTCXO, provided that you have a reference signal source. Micro-SD: Support booting via SD card, need to connect SD-H jumper to 1V8.   PLUTO Standard Package Included: – 1 x SDR Radio PLUTO PLUTO Standard with Antenna Package Included: – 1 x SDR Radio PLUTO – 1 x USB cable – 1 x 8dBi 2.4GHz/5GHz/5.8GHz antenna – 1 x 5dBi 40MHz-860MHz antenna – 1 x 40MHz-6GHz telescopic antenna – 1 x 12dBi 700MHz-2700MHz antenna Note: – It is assembled and ready to use. – SD card is not included in the package.
