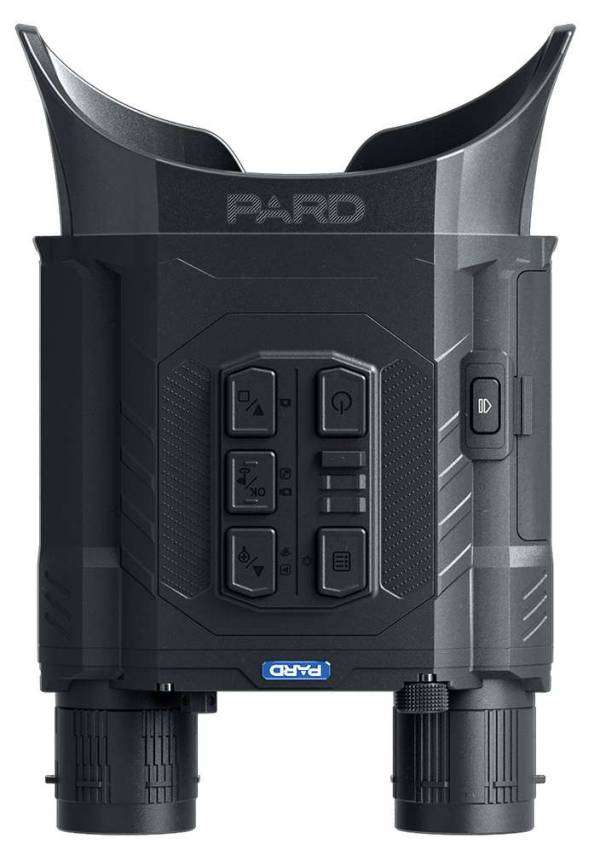

Description The Merlin ME-50/850 binoculars feature 4.6x to 9.2x magnification for flexible viewing across distances. Its PIP mode provides a magnified inset up to 18.4x allowing precise target tracking while maintaining broader situational awareness. – A 350-meter IR illuminator enhances night vision performance enabling reliable observation in total darkness. Lightweight and portable the Merlin ME-50/850 is designed for hunters tactical operators and outdoor enthusiasts requiring high-quality long-range imaging in low-light environments. – Constructed for field use these binoculars combine advanced optics high-sensitivity sensors and durable design to provide dependable nighttime observation in a compact package. – General – Model Merlin – Sensor – Sensor Type CMOS – Sensor Resolution(pixel) 1920*1080 – Pixel size(um) 2.9 – Sensitivity(lux) 0.0001 – Frame rate(Hz) 60(Color)/30(B&W) – Image Engine PARD VLEA – Optics – Objective lens(mm) 35/50 – Optical Magnification(x) 3.2/4.6 – Digital zoom(x) 2 – Horizontal Field of view (HxV) 6.8°/4.8° – Vertical Field of view (HxV) 5.1°/3.6° – Diagonal Field of view (HxV) 8.5°/6.0° – Focus range 3m-inf – Diopter adjustment(D) -5~3 – IR Illuminator – IR Type VCSEL – IR power(W) 5 – IR illuminating level 3 Levels – IR distance(m) 350 – IR Wavelength(nm) 850/940 – Display – Display Type OLED – Display Resolution(pixel) 640*480 – Color mode Color/Black&White – Main function – PIP Yes – Auto recording Yes – Loop recording Yes – Time stamp Yes – Record audio Yes – Exposure compensation Yes – Storage(GB) Micro SD card (Max. 128GB) – Connections – USB Type-C Yes – WiFi Yes – Supported Apps PardVision2 – Power Supply – Battery type Lithium Ion 21700*1 – Output voltage(V) 3.7 – Operating time(hmax) 6 – External power supply(V) Type-C – Environmental characteristic – Degree of protection IP67 – Operating temp(°C/°F) -30 ~ 55 / -22 ~ 131 – Material – Housing AL6061 & Composite – Objective lens Glass – Measurement – Product dimension(L x W x H mm) 220*137*58 – N.W/pcs(with/without battery g) 441.6
