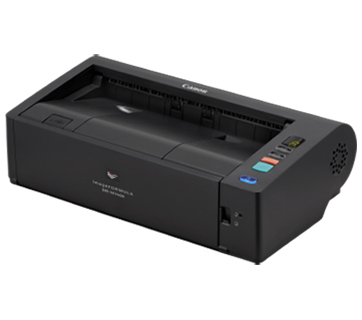

Description imageFORMULA DR-M140II Compact Desktop Scanner for a Productive Workgroup Made for business, the imageFORMULA DR-M140II helps automate your business’ information capture processes efficiently. Desktop Document Scanner Scan Size: A4 / LTR Scan Speed: Up to 40 ppm (Simplex) / 80 ipm (Duplex) Features Compact Space-Saving Design The U-turn path mode enables full-front operation, while saving space when placed on countertops or tight spaces. Fast and High-quality Scanning Scan with an impressive output resolution of up to 1,200 dpi at fast speeds of up to 40 ppm (simplex) / 80 ipm (duplex). Versatile Media Scanning DR-M140II is able to handle media of wide ranging textures and thickness. Easy to set-up, fast scanning of paper documents, receipts, IDs and business cards are possible with just a touch of a button. Scanning Type Desktop Sheet-Fed Scanner Scanning Speed*1 Greyscale 200 dpi: 40 ppm (Simplex) / 80 ipm (Duplex) 300 dpi: 40 ppm (Simplex) / 80 ipm (Duplex) Colour 200 dpi: 40 ppm (Simplex) / 80 ipm (Duplex) 300 dpi: 40 ppm (Simplex) / 80 ipm (Duplex) Scanning Element Contact Image Sensor (CIS) Light Source LED Scanning Side Simplex / Duplex Scanning Modes Black and White, Error Diffusion, 256-level Greyscale, Active Threshold, Advanced Text Enhancement, Advanced Text Enhancement II, 24-bit Colour Scanner Features Folio Scanning, Double Feed Release, 2D / Barcode Optical Resolution (Max.) 600 dpi Output Resolution*2 100, 150, 200, 240, 300, 400, 600, 1200 dpi Media Handling Document Size Plain Paper Width: 50.8 to 216 mm Length: 54 to 356 mm (Up to 5,588 mm long with Long Document mode.) Business Card Width: 50.8 to 55 mm Length: 85 to 91 mm Card (ISO Standard) 54 x 86 mm Document Thickness and Weight Plain Paper U-turn Path: 27 to 128 g/m² (0.04 to 0.15 mm) Straight Path: 27 to 255 g/m² (0.04 to 0.3 mm) Business Card 380 g/m² (0.45 mm) or smaller (Use the straight path and place vertically.) Card 0.76 mm or less 1.4 mm or less for the embossment (Use the straight path and place vertically.) ADF Capacity*3 80 sheets Connectivity & Software Interface USB 2.0 Software ISIS / TWAIN / WIA Drivers, CaptureOnTouch General Power Requirements AC 100 – 240 V (50 / 60 Hz) Power Consumption Scanning (Max.) 24.5 W Sleep Mode 1.6 W With Power Switched OFF (Max.) 0.1 W Operating Environment Temperature 10 to 32.5°C Humidity 20 to 80% RH Dimensions (W x D x H) When Trays Are Closed 313 × 181 × 93 mm When Trays Are Opened 313 × 250 × 165 mm Weight (Approx.) 2.6 kg (without AC adapter) Consumables & Accessories Options / Consumables Exchange Roller Kit Accessories Flatbed Scanner Unit 102 Flatbed Scanner Unit 201
