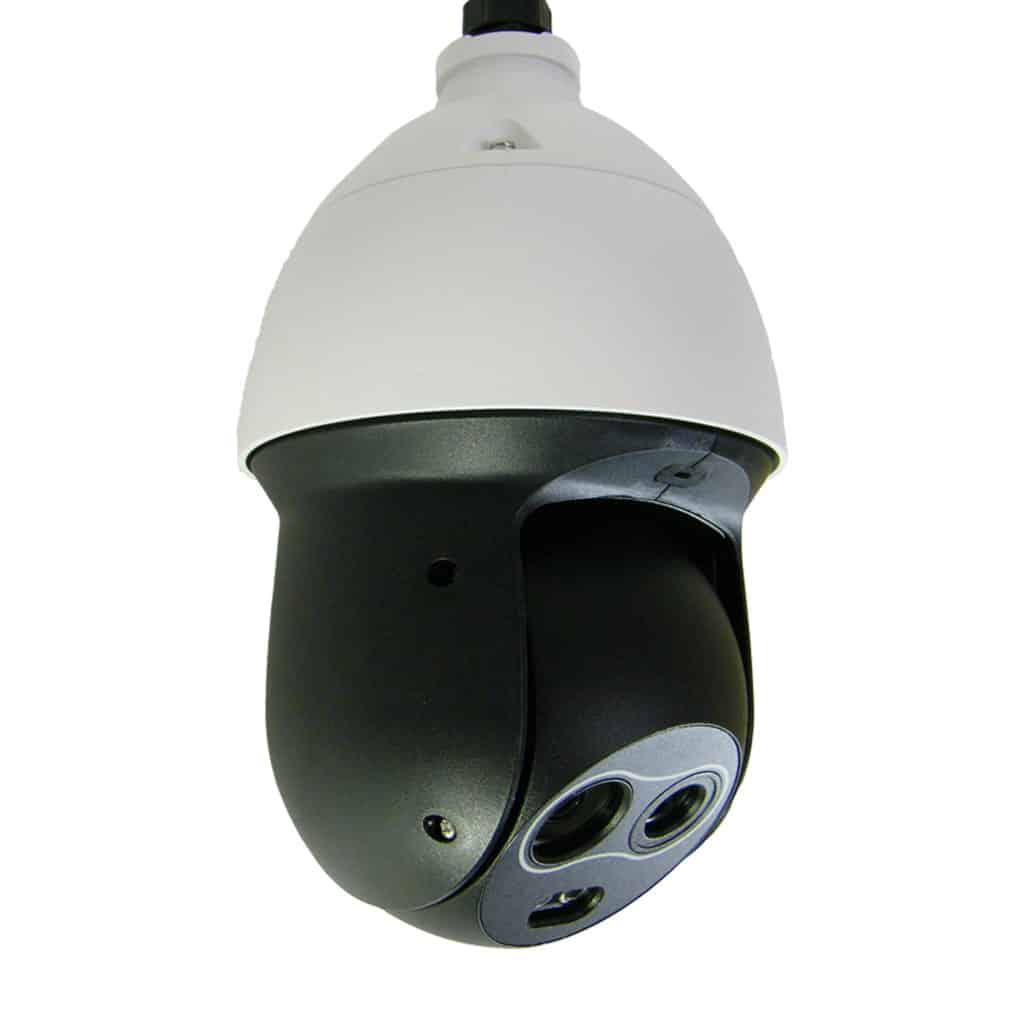

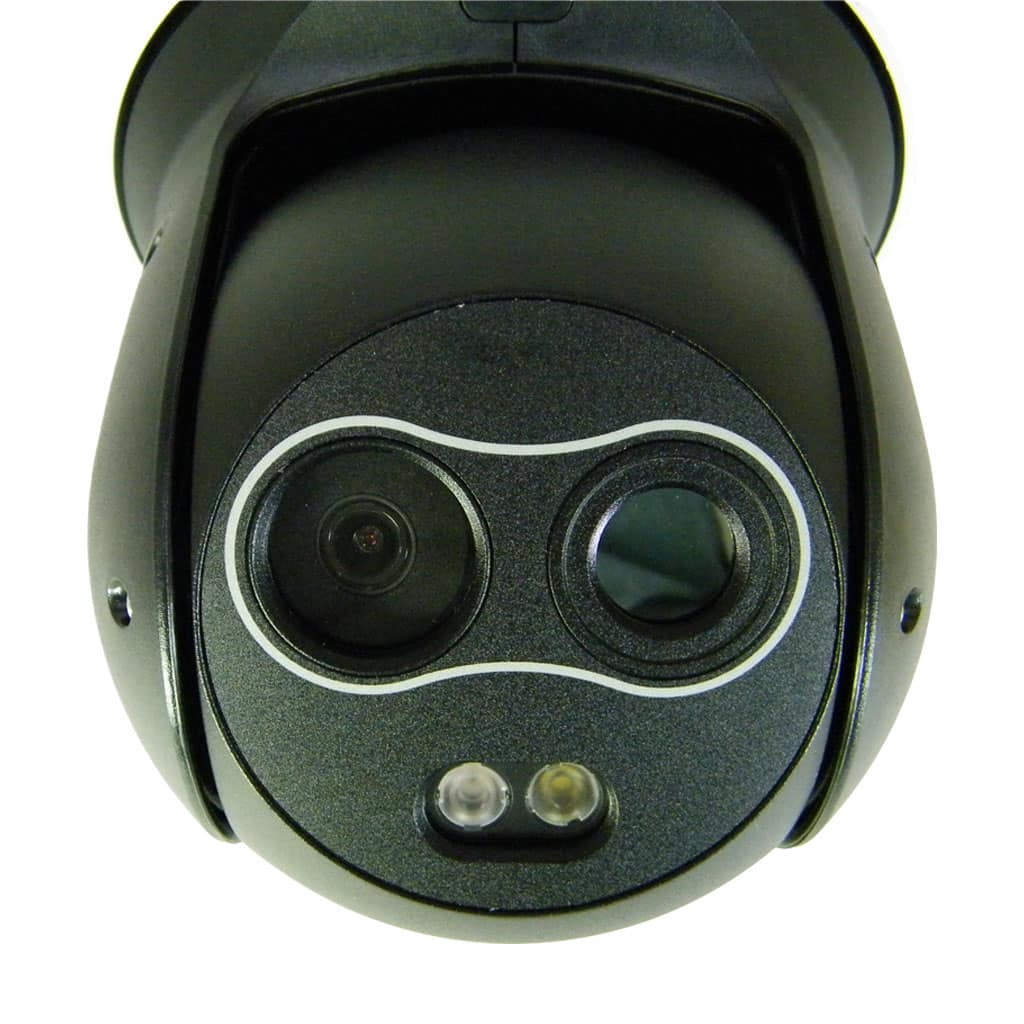

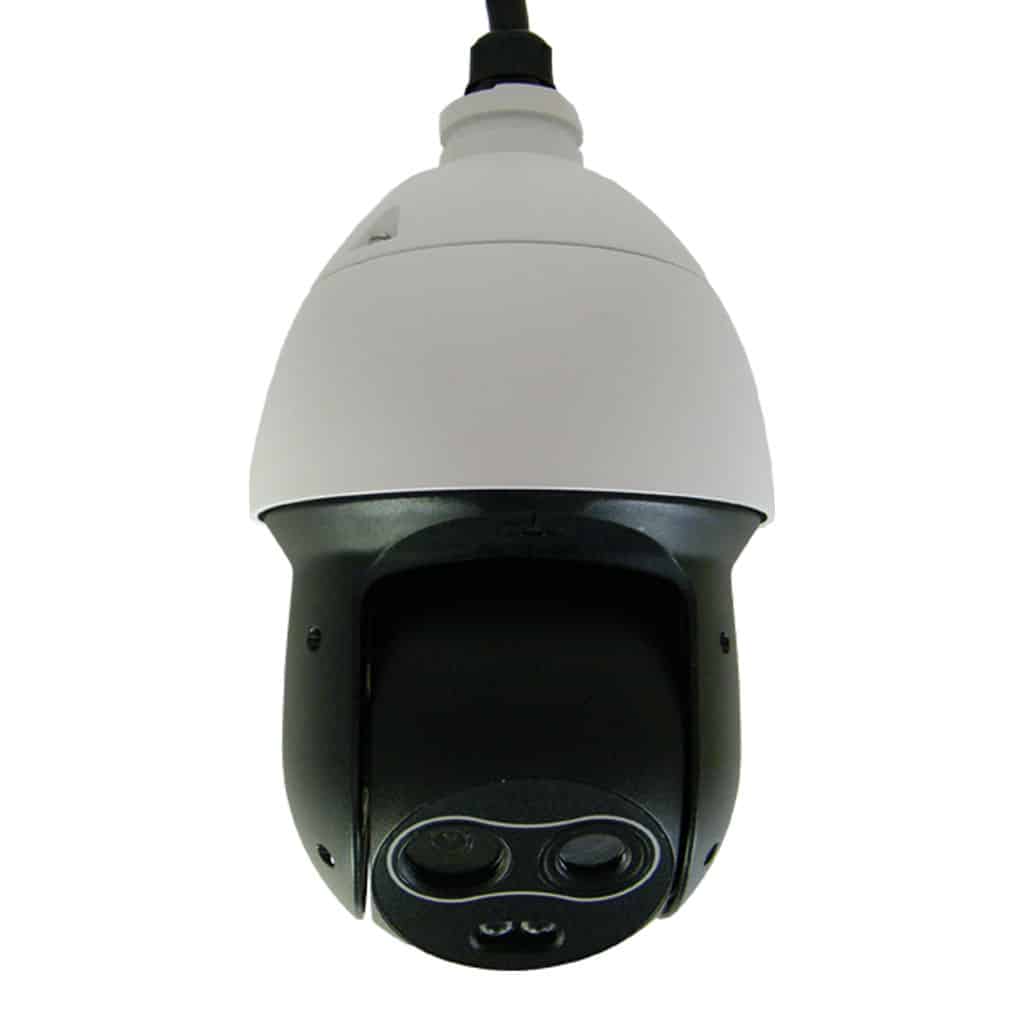

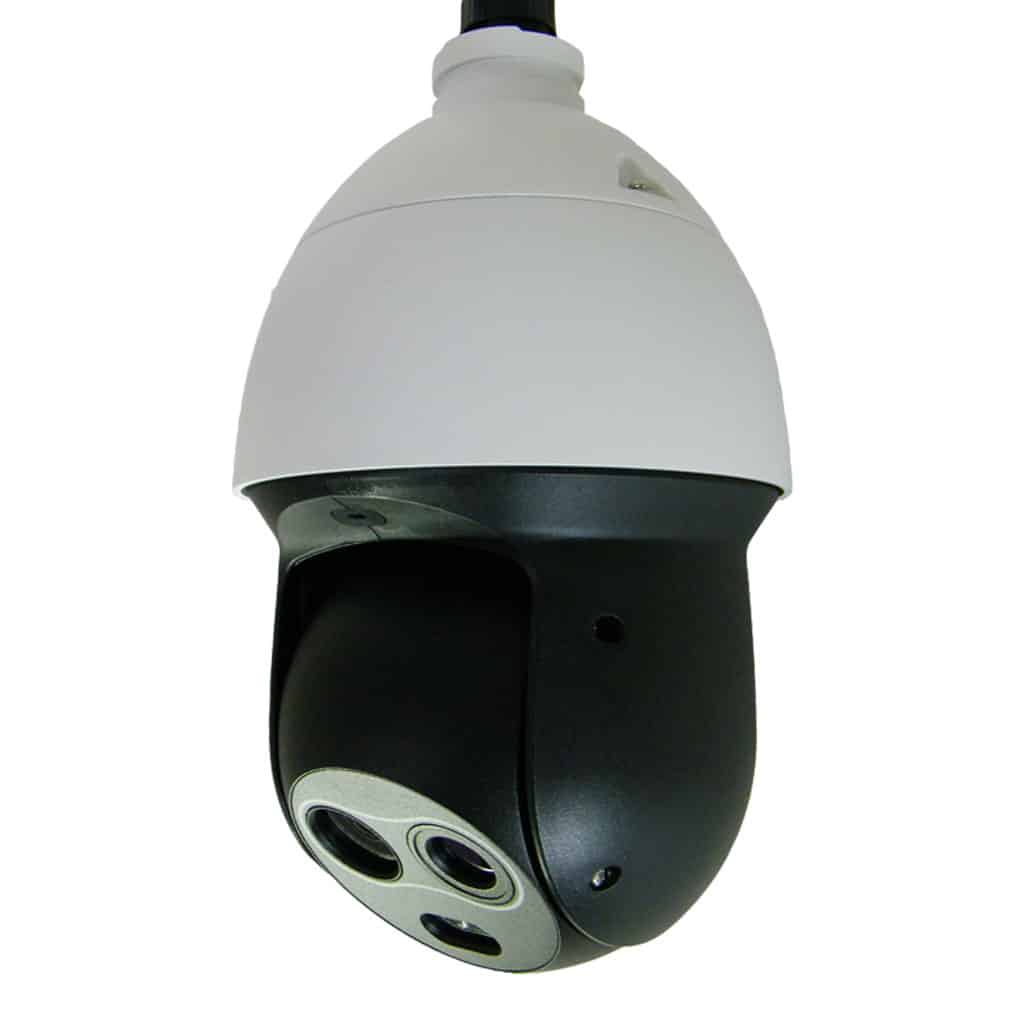

2MP Elite 4/3.5mm Hybrid Thermal Network Camera

Description The Elite Series IPPT-ELT2D delivers advanced hybrid surveillance capabilities by combining thermal imaging with high-definition visible light monitoring in a single pan-tilt-zoom platform. Built around an uncooled VOx Microbolometer sensor paired with a 2-megapixel CMOS imager, this dual-sensor solution provides comprehensive situational awareness in any lighting condition while maintaining a compact, cost-effective design ideal for perimeter security and critical infrastructure monitoring. Dual-Sensor Specifications Thermal Sensor: 256 x 192 Uncooled VOx Microbolometer with 12um pixel size Visible Camera: 1/2.8″ 2 Megapixel progressive scan CMOS, 1920×1080 resolution Thermal Sensitivity: ≤50mK (NETD) for superior temperature differentiation Thermal Lens: 4mm fixed F1.0, athermalized and focus-free design Visible Lens: 3.5mm F2.0 with 84° horizontal field of view Spectral Range: 8 to 14um for thermal detection IR Range: 35 meters with 0 Lux performance ✓ Uncooled VOx technology delivers lighter weight and smaller footprint compared to traditional cooled thermal detectors while reducing total cost of ownership Advanced PTZ and Intelligence Capabilities Professional-grade pan-tilt mechanics provide 360° endless pan rotation and -15° to 90° tilt range, with manual control speeds reaching 200°/s pan and 120°/s tilt. The system supports up to 300 presets, 5 auto scan patterns, 8 tour routes, and 5 pattern sequences for comprehensive coverage automation. Integrated IVS analytics include tripwire and intrusion detection with smart alarm linkage to white light and loudspeaker outputs. Fire detection capabilities add critical safety monitoring, while manual or alarm-triggered tracking enables automated threat response. ✓ Operates reliably in extreme environments from -22°F to 140°F with IP66 weatherproof protection Professional Recording and Network Integration H.265/H.264 compression with bitrates from 640 to 8192 Kbps optimizes bandwidth efficiency while maintaining image quality. The integrated Micro SD slot accepts cards up to 256GB for edge recording or Automatic Network Replenishment functionality. Network connectivity via RJ-45 10/100Base-T supports PoE power delivery alongside DC12V options. Protocol compatibility includes ONVIF conformance with support for HTTP, RTSP, IPv4/IPv6, SNMP, and additional standard protocols. The system accommodates up to 20 concurrent users and offers multiple streaming configurations for both thermal and visible channels. Ideal Applications Perimeter security for industrial facilities and critical infrastructure Fire detection and early warning systems Low-visibility monitoring in challenging weather conditions Long-range intrusion detection and tracking Temperature-sensitive area surveillance
