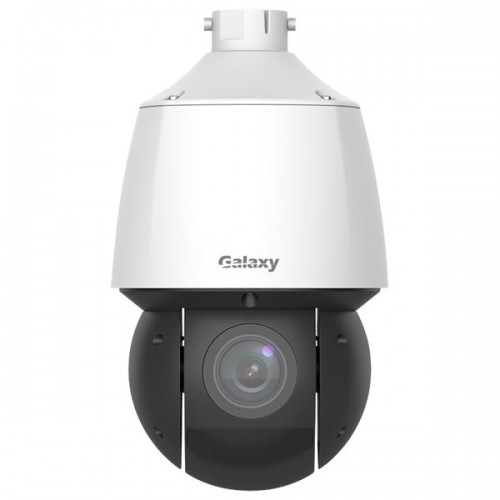

GXPTZ968FSL-25X-AT Galaxy Pro 4MP 25x Starlight Auto Tracking IP PTZ Camera

Description Camera Sensor 1/2.8″, 4.0 megapixel, progressive scan, CMOS Min. Illumination Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s WDR 120dB S/N >56dB Lens Lens type 4.8 ~ 120mm, AF automatic focusing and motorized zoom lens Digital Zoom 16 Optical Zoom 25 Iris Auto; F1.5 ~ F3.8 Angle of View (H) 52.20°~2.74° Angle of View (V) 30.81°~1.54° Angle of View (O) 64.20°~3.23° DORI DORI Distance Lens (4.8mm), Detect 119.3m(391.2ft), Observe 47.7m(156.5ft), Recognize 23.9m(78.2ft), Identify 11.9m(39.1ft) Lens (120mm), Detect 4752.0m(8120.1ft), Observe 990.0m(3248.0ft), Recognize 495.0m(1624.0ft), Identify 247.5m(812.0ft) Illuminator IR Range Up to 100m (328 ft) IR range Wavelength 850nm IR On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264, MJPEG Frame Rate Main Stream: 4MP(2688*1520),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; Video Bit Rate 128 Kbps~16 Mbps U-code Support ROI Support Video Stream Triple streams OSD Up to 8 OSDs Privacy Mask 24 areas, up to 4 areas per scene Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital Noise Reduction 2D/3D DNR Smart IR Support Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise HLC Support BLC Support Defog Digital Defog Events Basic Detection Motion detection, Audio detection, Tampering Alarm Auto Tracking Support General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication Audio Audio Compression G.711U,G.711A Audio Bitrate 64 Kbps Two-way Audio Support Suppression Support Sampling Rate 8 kHz Storage Edge Storage Micro SD, up to 256 GB Network Storage ANR,NAS(NFS) Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK User/Host Up to 32 users. 2 user levels: administrator and common user Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF Client Galaxy8000 Web Browser Plug-in required live view: IE9 , Chrome 41 and below, Firefox 52 and below Pan & Tilt Pan Range 360° (endless) Pan Speed 0.1°/s ~ 200°/s Preset speed: 240°/s Tilt Range –15° ~ 90° (auto reverse) Tilt Speed 0.1°/s ~ 120°/s Preset speed: 200°/s Number of Presets 1024 Preset Patrol 16 patrols, up to 64 presets for each patrol Route Patrol 16 patrols, up to 32 actions for each patrol Recorded Patrol 16 patrols, up to 128 actions for each patrol Patrol Stay Time 15s~1800s Preset Image Freeze Support Home Position Support Interface Audio I/O 1/1 Alarm I/O 2/1 Serial Port 1 RS485 Built-in Mic N/A Built-in Speaker N/A WIFI N/A Network 1 * RJ45 10M/100M Base-TX Ethernet Video Output 1 BNC Certification Certification CE, FCC General Power DC12V( /-25%,3A), PoE (IEEE 802.3at) Power consumption: MAX 21W Power Interface Dia. 5.5mm coaxial power plug Dimensions (Dia. x H) Dia.166 x 295mm (Dia.6.5″ x 11.6″) Weight 3.05kg(6.72lb) Working Environment -40°C~70°C(-40°F ~ 158°F), Humidity: </=95% RH (non-condensing) Storage Environment -40°C~70°C(-40°F ~ 158°F), Humidity: </=95% RH (non-condensing) Surge Protection 6KV Reset Button Support Protection Ingression protection: IP67 Vandal resistant: IK10
